WPX-KZQDL-SW

WPX-KZQDL-SW


Product  introduction:The product is a low cost LAN extension solution using the G.993.2 VDSL2 standard technology and providing up to 100Mbps symmetric using only a single copper wire pair.  Designed specifically or a LAN to LAN extension and supporting both symmetrical and asymmetrical transmission at up to 10/100Mbps within 300 meters and 5/1Mbps at 3000 meters.Built-in lightning surge protector.This is a perfect solution to extend LAN to buildings, hotels, hospitals or any location outside of the 100 meters reach of Ethernet UTP。

Product application:LAN can be extend to buildings,hotela,hospitals or any location outside of the 100 meters reach of Ethernet UTP.

Phone number:+86-731-88650578

Contact E-mail:service@hnwpx.com


Specifications

Model Number

WPX-KZQDL-SW



Standard

IEEE802.3 /IEEE802.3u/IEEE802.3ab standard

ITU-T G993.2 VDSL2 standard

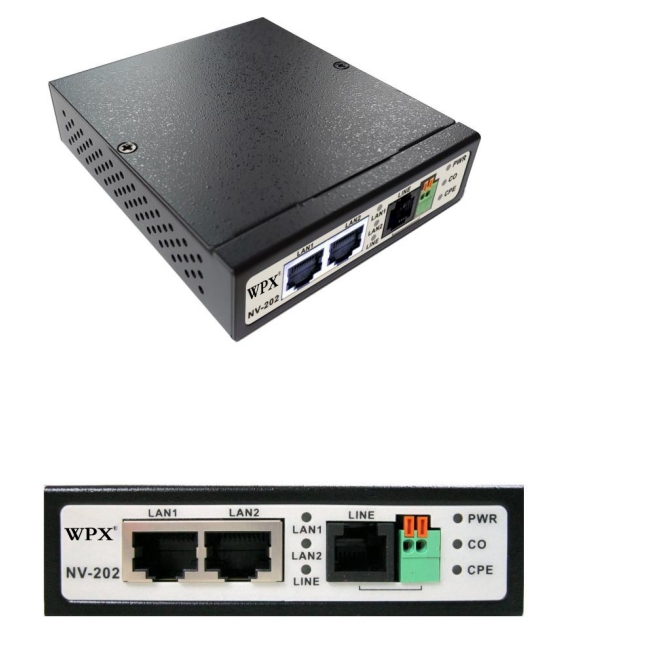

Physical Interface

2 x RJ-45 10/100/1000Mbps auto-negotiation/ auto-MDIX Ethernet port
1 x RJ-11/Terminal Block combo for  line port
1 x DIP Switch
 1 x Power Jack

Cable Connections

RJ-45 (Ethernet): Category 3~7 UTP/STP
RJ-11 (Line): Twisted Pair phone wire



LED indication

1 x Power LED
 2 x Link/Active indicator for Ethernet port
 1 x Link /Active indicator for Line port
 1 x CO Mode indicator LED
 1 x CPE Mode indicator LED

Power Requirement

 Input Voltage: 12VDC / 1A (Commercial-grade Power Adapter)

Typical Power Consumption

5W

VDSL2 Line Code

Discrete multitone (DMT) modulation

 VDSL2 Transmission Mode

 Packet Transfer Mode (PTM)

Operating Temperature

0°C~ 50°C (32°F ~ 122°F) Fanless, free air cooling

Storage Temperature

-20°C ~ 70°C (-4°F ~ 158°F)

Humidity:

10 to 90% (non-condensing)


Diagram of dimensions
Description

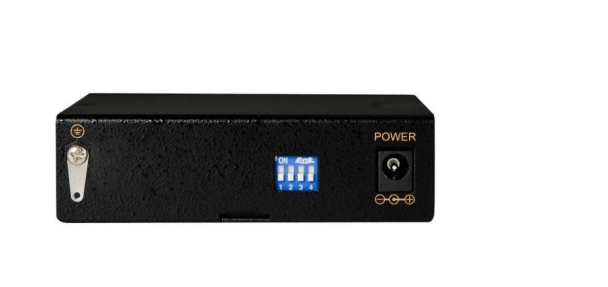

This product supports both central office (CO) and customer-premises equipment (CPE) modes selectable through DIP Switch.Customers can do the configuration for different needs adjustment.PIN1 ON of DIP Switch is CPE side,PIN1 OFF of DIP Swich is CO side.
