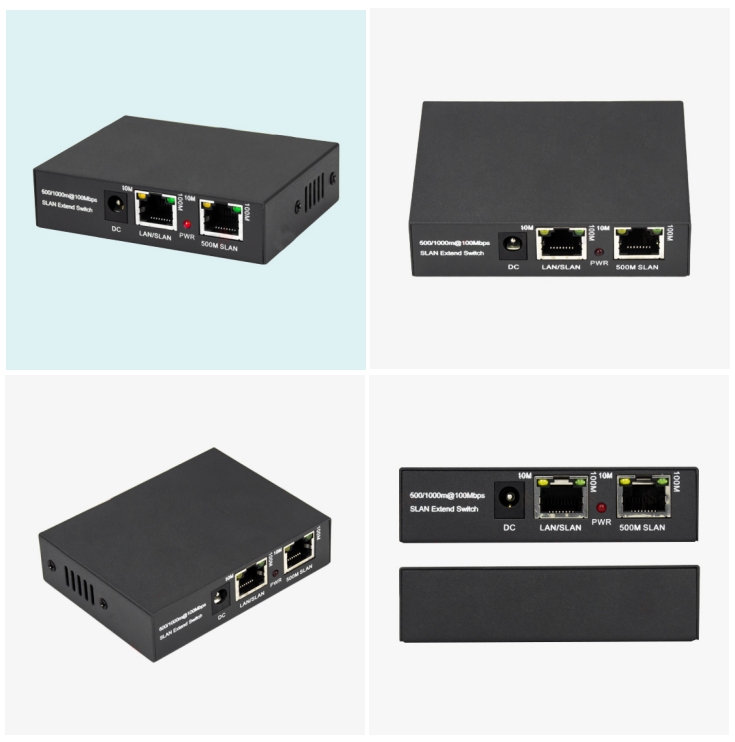

WPX-KZQ-NZ(500m)
Product introduction:POE power supply network extender 500m 600m 1400m .POE reverse power supply Bridge extender .Network signal booster POE received switch.
Product application:Widely used with hotels, schools, hospitals, factories and other networking and wiring difficulties monitoring scenarios.
Phone number:+86-731-88650578
Specifications
Model Number | WPX-KZQ-NZ(500m) |
Port | 1 standard 100 Mbps network port/1 SLAN network extension port |
Network protocol | IEEE 802.3/IEEE 802.31 10BASE-T/IEEE 802.3U 100BASE-TX |
Forwarding mode |
|
Transmission rate | 10BEST-T:CAT3,4,5 UTP(≤300METER 100BASE-TX:CAT5 OR LATER UPT(150METER)Both sides SLAN agreement≤500m/100Mbps,≤800/10Mbps |
System support | Windows 98SE/ME/2000/XP,Linux |
Power source | DC 12V/2A ,102ESP-IN, Support POE power supply |
Temperature | -25℃~+75℃ |
Humidity | 5%~90%,RH Condensation free |
Shell material | Metal case |
Installation method | desktop |
Lightning Protection | Port lightning protection 30KV 8/20US |
|
Diagram of dimensions
Description
Application diagram

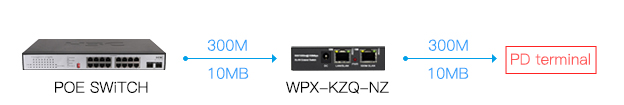

Option 1:The application of WPX-KZQ-NZ(500m)-IN

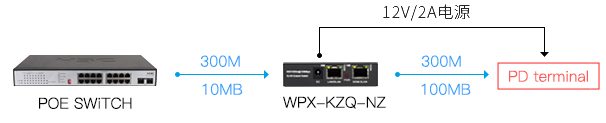

Option 2:The application of WPX-KZQ-NZ(500m)-OUT

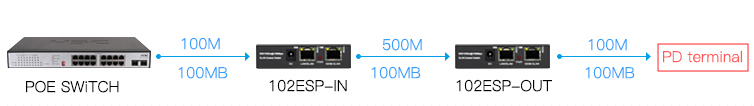

Option 3:WPX-KZQ-NZ(500m)-IN+WPX-KZQ-NZ(500m)-OUT application drawing(100M)

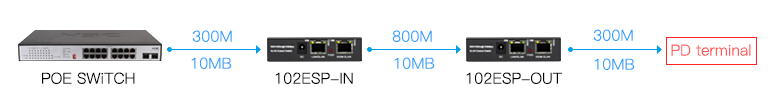

Option 4:WPX-KZQ-NZ(500m)-IN+WPX-KZQ-NZ(500m)-OUT application drawing(10M)
