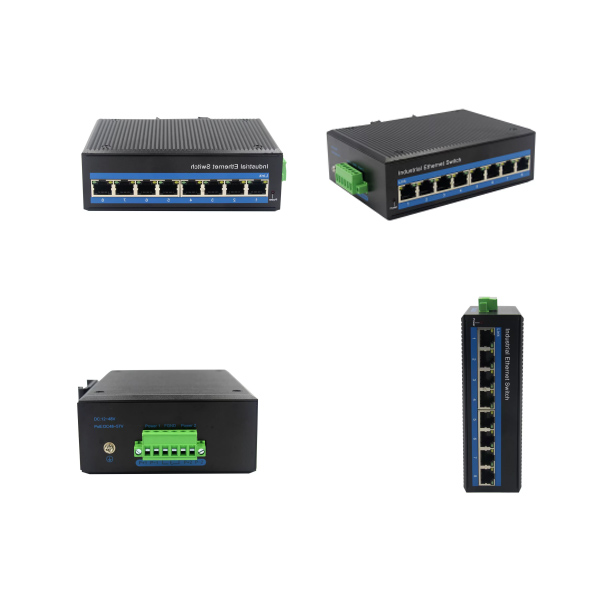

Entry-level industrial-grade Ethernet switch, offering high cost-effectiveness, with 8 ports, 100Mbps, up to 8 ports with PoE output, suitable for distributors, ori

Model: WPX-08GP

10/100/1000BASE-TX ports

8 ports of RJ-45 automatic MDI/MDI-X interface

PoE specification

PoE standard: IEEE802.3af/IEEE802.3at

PoE interface: 1 to 8 interfaces support PoE function

Power output:

Maximum power 15.4 watts (in accordance with IEEE 802.3af standard)

Maximum power 30 watts (in accordance with IEEE 802.3at standard)

PoE port automatic detection for AF/AT devices

Output voltage: DC 48 volts

Power pin allocation: 1/2+; 3/6-

Power type: Terminal type (mid-section type optional)

Performance specification manual

Bandwidth: 20Gbps

Packet buffer memory: 2Mbit

Packet forwarding rate: 15Mpps

MAC address table: 8K Installation

DIN rail

Maximum frame size

9000 bytes of data packet size Flow control

In half-duplex mode, the backpressure mechanism is used; in full-duplex mode, the IEEE 802.3x pause frame mechanism is adopted. Attachment

IP40 aluminum housing

LED indicator light Color: Red

Ethernet: Yellow

POE: Green

Power Input

48 to 57 volts direct current

Power Consumption

3 watts

Surge Protection

±4 kilovolts

Network Protocol

IEEE 802.3 10BASE-T;

IEEE 802.3i standard's 10Base-T communication protocol;

IEEE 802.3u; 100Base-TX/FX;

IEEE 802.3ab standard under 1000Base-T;

IEEE 802.3z 1000Base-X;

IEEE 802.3x;

Network Cable

10BASE-T: Cat3, Cat4, Cat5, Super 5 Category Unshielded Twisted Pair (length ≤ 100 meters)

100BASE-TX: Cat5 or higher specification unshielded twisted pair (length ≤ 10 meters)

1000BASE-TX: Cat6 or higher specification unshielded twisted pair (length ≤ 100 meters) Industry standard

FCC CFR47 Part 15, EN55022/CISPR22, Class A

IEC 61000-4-2 (Electrostatic Discharge Protection): Contact type ±8 kilovolts, Air environment ±12 kilovolts

IEC 61000-4-3 (RS): 10V/m (80 - 1000 MHz)

IEC 61000-4-4 (Electrical Fast Transient Pulse Group Immunity): Power port: ±4 kilovolts; Data port: ±2 kilovolts

IEC 61000-4-5 (Surge): Power port: ±2 kilovolts/decimeter, ±4 kilovolts/cm; Data port: ±2 kilovolts

IEC 61000-4-6 (CS): 3 volts (10 kHz - 150 kHz); 10 volts (150 kHz - 80 MHz)

IEC 61000-4-16 (Common Mode Conduction): 30 volts (continuous state), 300 volts (1 second) Certification

CE certification, FCC certification, RoHS compliance certification

Mean Time Between Failures

300,000 hours

Dimensions (width x length x height)

143.7 millimeters x 103.8 millimeters x 47.7 millimeters Weight

Product weight: 0.36 kilograms

Packaging weight: 0.46 kilograms Work environment

Working temperature: -40 to 80 degrees Celsius;

Storage temperature: -40 to 80 degrees Celsius

Relative humidity: 5% to 95% (no condensation)

Warranty; Assurance; Guarantee

New components can be replaced within 1 year; Main components can be used for 3 years.
