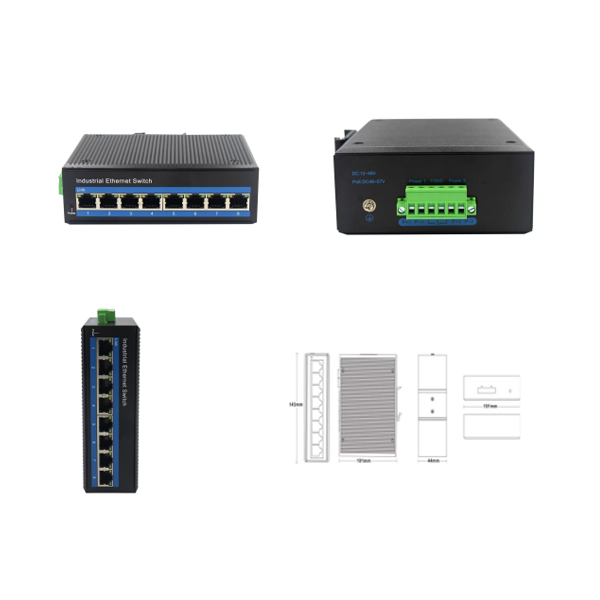

Entry-level industrial-grade Ethernet switch, offering high cost-effectiveness, with 8 ports, 100Mbps, up to 8 ports with PoE output, suitable for distributors, ori

The WPX-08F series products offer excellent flexibility and can support various 10/100Mbps Ethernet media, achieving highly stable optical fiber transmission performance through RJ-45 interfaces.

The ZXR08F series is packaged in a compact IP40 chassis, supporting DIN rail installation as well as panel installation, thus effectively utilizing cabinet space. It is equipped with an integrated power supply, with a wide voltage range, suitable for global operation. Additionally, it provides dual redundant, reversible polarity 12V DC to 52V DC power input, suitable for high availability applications requiring dual or backup power input.

Interfaces:

8 10/100Base-TX type RJ-45 interfaces with auto negotiation and auto MDI/MDI-X functionality.

Industrial consistency

• 12V to 52V DC, redundant power input

-40°C to 85°C operating temperature

• IP40 aluminum enclosure

• Supports 6kV DC Ethernet electrostatic discharge protection

• Supports 6kV DC transient overvoltage test protection function, suitable for power lines.

• Free fall, shock and vibration stability

• Embedded DIN rail and wall mount hardware design

Model: WPX-08F

10/100BASE-TX ports: 8 RJ-45 auto MDI/MDI-X interfaces

Performance specifications: Bandwidth: 1.6Gbps; Data cache memory: 1Mbit; Data forwarding rate: 1.2Mpps; MAC address table: 2K

Installation method: DIN rail

Maximum frame size: 9000 byte data packet size

Flow control: Half-duplex using back pressure control, full-duplex using IEEE 802.3x pause frame

Enclosure: IP40 aluminum enclosure

LED indicators: Power: red; Ethernet: yellow; POE: green

Power input: 12 to 52V DC redundant power supply

Maximum power consumption: 3W

Surge protection: ±4KV

Network protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u; 100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;

Network cables: 10BASE-T: Cat3, 4, 5 UTP (≤100 meters); 100BASE-TX: Cat5 or higher version UTP (≤10 meters); 1000BASE-TX: Cat6 or higher version UTP (≤100 meters)

Industry standards: FCC CFR47 Part 15, EN55022/CISPR22, Class I IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air); IEC 61000-4-3 (RS): 10V/m (80 - 1000 MHz); IEC 61000-4-4 (EFT): Power port: ±4kV; Data port: ±2kV; IEC 61000-4-5 (Surge): Power port: ±2kV/DM, ±4kV/CM; Data port: ±2kV; IEC 61000-4-6 (CS): 3V (10kHz - 150kHz); 10V (150kHz - 80MHz); IEC 61000-4-16 (Common Mode Conduction): 30V (continuous), 300V (1s) Certification - CE Certification, FCC Certification, RoHS Compliance Certification

Average Uninterrupted Operation Time > 300,000 hours

Dimensions (Width x Length x Height): 143.7 x 103 x 47.7 millimeters

Weight: Product weight: 0.52 kilograms; Packaging weight: 0.62 kilograms

Operating Environment: Operating temperature: -40 to 85 degrees Celsius; Storage temperature: -40 to 85 degrees Celsius; Relative humidity: 5% to 95% (no condensation)

Warranty: Replacement of new components within 1 year; Main components 3-year warranty.
