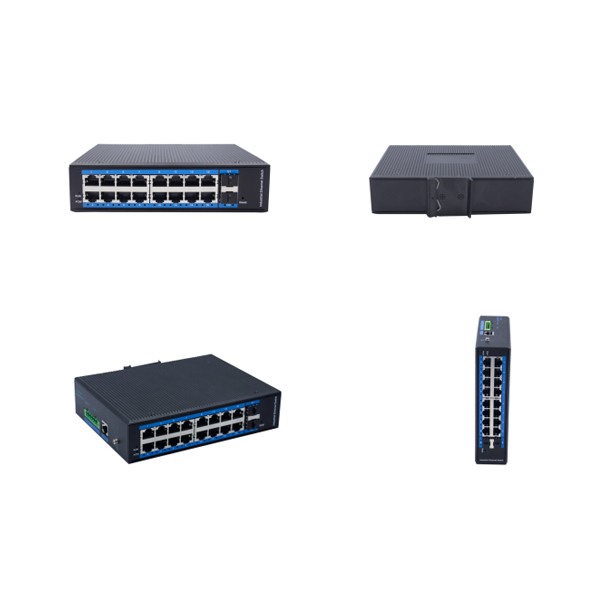

16 ports 10100Base-Tx RJ45 + 2G SFP managed industrial switch, L2 Ethernet switch, IP40 protection grade panel-mounted chassis switch, model WPX-GFS-M-SFP

WPX-GFS-M-SFP is a robust and durable 18-port industrial Ethernet switch that can provide unobstructed high-speed transmission performance in harsh industrial environments.is suitable for applications such as monitoring system deployment, control management, and providing wireless services in environments with harsh climatic conditions and a wide temperature range (from -40°C to 80°C).

WPX-GFS-M-SFP can support various 10/1000Mbps Ethernet media and achieve stable and efficient optical fiber transmission performance through the RJ-45 interface.

WPX-GFS-M-SFP is encapsulated in a compact IP40 housing and has DIN interface installation capabilities. It can provide power covering a wide voltage range and is suitable for global operation. Additionally, it offers dual redundant, reversible polarity 12V to 52V DC power input, suitable for high availability applications requiring dual or backup power input. WPX-GFS-M-SFP

100Base-TX port

16 ports of RJ-45 auto MDI/MDI-X interface

1000Base-FX port

2G SFP slot

Performance specification

Bandwidth: 12.8 Gbps

Packet buffer memory: 12 Mbit

Packet forwarding rate: 9.5 Mpps

MAC address table: 4K Installation

DIN guide rail

Maximum frame size

10240-byte data packet size

Flow control

Backpressure mechanism in half-duplex mode, IEEE 802.3x pause frame mechanism in full-duplex mode Attachment

IP40 aluminum housing LED indicator light

Color: Red

Fiber optic: Line 2 (Green)

Ethernet: Yellow Power input

12 to 52 volts DC redundant power supply

Surge protection

± 4 kilovolts Protection

ESD (Ethernet): 6 kilovolt direct current

Peak (voltage): 6 kilovolt direct current

Network protocol

IEEE 802.3 10BASE-T;

IEEE 802.3i standard 10Base-T communication protocol;

IEEE 802.3u; 100Base-TX/FX;

IEEE 802.3x;

Network cable

10BASE-T: Cat3, Cat4, Cat5 copper coaxial network cable (length ≤ 100 meters)

100BASE-TX: Cat5 or higher specification unshielded twisted pair (length ≤ 100 meters)

Industry standard

FCC CFR47 Part 15, EN55032 Class A grade

IEC61000-4-2 (Electrostatic Discharge Protection): Contact type ±8 kilovolts, air environment ±12 kilovolts

IEC61000-4-3 (RS): 10V/m (80 - 1000 MHz)

IEC61000-4-4 (Electrical Fast Transient Pulse Group Immunity): Power port: ±4 kilovolts; Data port: ±2 kilovolts

IEC61000-4-5 (Surge): Power port: ±2 kilovolts/decimeter, ±4 kilovolts/cm; Data port: ±2 kilovolts

IEC61000-4-6 (CS): 3 volts (10 kHz - 150 kHz); 10 volts (150 kHz - 80 MHz)

IEC61000-4-16 (Common Mode Conduction): 30 volts (continuous state), 300 volts (1 second) Certification

CE certification, FCC certification, RoHS compliance certification

Mean Time Between Failures

300,000 hours

Dimensions (width x length x height)

175.6 × 135 × 45.5 millimeters Weight

Product weight: 0.7 kilograms

Packaging weight: 0.8 kilograms

Operating environment

Operating temperature: -40 to 80 degrees Celsius;

Storage temperature: -40 to 80 degrees Celsius

Relative humidity: 5% to 95% (no condensation)

Software:

Port facilities

IEEE 802.3x flow control

Interface counter

Storm control

Link aggregation

Static aggregation

Dynamic aggregation, link aggregation protocol

Supports up to 8 aggregation groups, with each group having up to 8 ports

Supports routing policies for source MAC address, destination MAC address, source and destination MAC address, source IP address, destination IP address, and source and destination IP address

MAC table management Support

Forwarding mode

Supports IVL forwarding mode

Static MAC address Support

MAC address binding Support

MAC address filtering Support

Mirror

Port-based mirroring

Spanning Tree

IEEE 802.1d Spanning Tree Protocol

IEEE 802.1w Standardized Rapid Spanning Tree Protocol

IEEE 802.1s MSTP

ERPS (G.8032)

Single loop, sub-loop, multi-loop

Load balancing

Recovery time < 50 milliseconds

GVRP (Global Virtual Reality Platform)

Supported; Supported

Qing Qin

VLAN-based Q-in-Q

LLDP (Link Layer Discovery Protocol)

LLDP (Link Layer Discovery Protocol) LLDP-MED

Loop protection

Supported; supported

VLAN (Virtual Local Area Network)

4094 virtual local area networks

Port-based VLAN

GVRP (Global Virtual Reality Platform)

Protocol-based Virtual Local Area Network

MAC-based VLAN

VLAN based on IP subnet

Voice VLAN

Static input LLDP-MED

Port isolation Support

IGMP (Internet Group Management Protocol)

IGMP V1 Network Monitoring Function

IGMP V2 Management Frame

IGMP V3 Listener Function

Source Port Check

IGMP Fast Leave

IGMP Filter

MLD Watch Function

MLD V1 Watch Function

MLD V2 Watch Function

Source Port Check

MLD Fast Departure

MLD Filter Safety

ACL (IP Standard Access Control List), IPv4/IPv6

MAC Extended Access Control List

IP Extended Access Control List

Match L2, L3, L4 fields

Log, Redirect, Mirror, Speed Limit

Quality of Service (QoS)

Quality of Service Class, Remarks

SP, WRR Queue Scheduling

Rate Limiting Based on Inbound Port

Inbound Rate Limiting Based on Priority

Rate Limiting Based on Outbound Port

Rate Limiting Based on Outbound Queue

Service Quality Based on Policy

Storm Control

Each port has 8 queues

Dot1x (a network authentication protocol)

Port Access Control

User Access Control

MAC Address Access Control AAA

Support 802.1x

Support the RADIUS protocol

Support for implementing authentication, authorization and accounting functions through the RADIUS server. Management

User Management

Password protection

SNMP (Simple Network Management Protocol) SNMP V1/V2c/V3

RMON (Remote Management Unit)

Statistics Group

History Group

Alert Group

Activity Group

Network Management

HTTP 1.1, HTTPS Firmware upgrade

Version upgrade IPv4/IPv6

Support

Command Line Interface Support

System log / Debug information Support

diagnosis

ping (IPv4), ping (IPv6)

Tracing route (IPv4)

Tracing route (IPv6) Management

NTP (Network Time Protocol)

NTP Client

Dynamic Host Configuration Protocol

DHCPv4 Client, DHCPv6 Client

Dynamic Host Configuration Protocol Monitoring Function

DHCP Snooping Table Item

Trust Zone

IPv6 DHCP Protection Mechanism Support

Telnet (Remote Login Protocol)

Telnet Server

TFTP (Simple File Transfer Protocol)

TFTP Client SSH

SSH server

Warranty; Guarantee; Guarantee

The new parts can be replaced within one year; the main components have a lifespan of three years.
