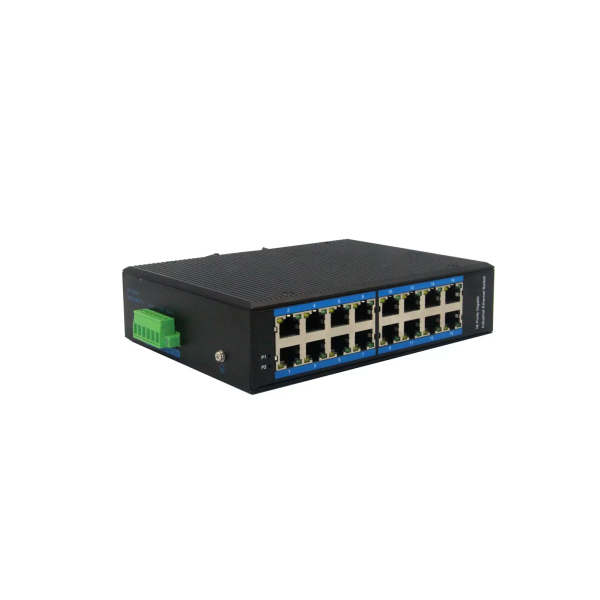

16-port rugged 10-100-TX Industrial PoE Switch applied work for outdoor CCTV each port max.30W WPX-016FP

10/100-TXPort

16 portRJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-16 port support PoE

Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)

PoE port Auto detect IEEE 802.3 af/at devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

Performance Specification

Bandwidth:3.2Gbps
Packet Buffer Memory:4Mbit
Packet Forwarding Rate: 2.4Mpps
MAC Address Table:8K

Installation

DIN rail

Maximum Frame Size

2000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing

LED Indicator

Power:Red
Ethernet: Yellow
POE: Green

Power Input

48 to57V DC redundant power

Surge protection

±4KV

Network Protocols

IEEE802.3 10BASE-T
IEEE802.3i 10Base-T
IEEE802.3u;100Base-TX
IEEE802.3x

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤10meter)

Industry Standard

EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A
EMS :
IEC(EN)61000-4-2(ESD) : ±8Kv contact discharge,±12kVair discharge
IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz)
IEC 61000-4-4 (EFT), Power cord±4kVdata cable:±2kV
IEC 61000-4-5 (Surge), Ethernet port±4kV CM//±2kV DM
IEC(EN)61000-4-6(RF conduction) : 3V(10kHz～150kHz),10V(150kHz～80MHz)
IEC(EN)61000-4-16(common conduction) : 30V cont. 300V,1s
IEC(EN )61000-4-8
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6

MTBF

>300,000hours

Certification

CE FCC Rohs compliance

Dimensions (W x D x H)

175.6 x 135 x 45.5 mm

Weight

Product Weight: 1.1KGS
Packing Weight: 1.2KGS

Working Environment

Working temperature: -40～80℃;
Storage temperature: -40～80℃
Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
