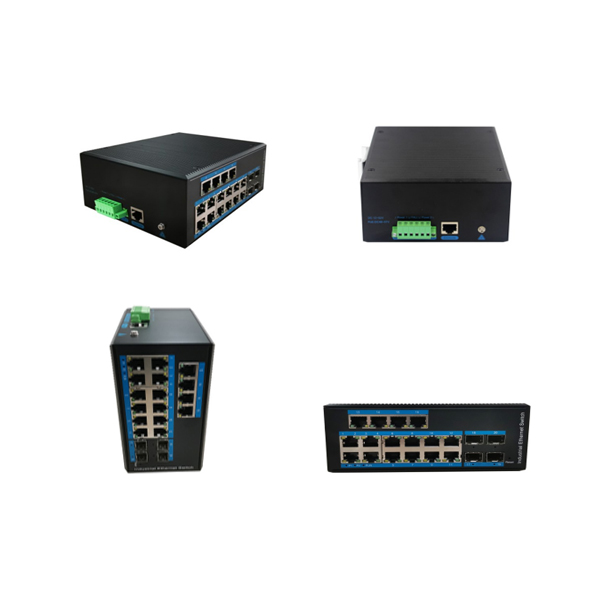

Alliuminun L2+ Managed Industrial Ethernet Switch 16 RJ45 PortsWPX-416BGS-SFP

1000Base-TX Port

16 port RJ-45 auto-MDI / MDI-X

1000Base-FX Port

4G SFP Slot

Performance Specification

Bandwidth(switch capacity): 106Gbps
     Packet Buffer Memory:16Mbit
     Packet Forwarding Rate: 78Mpps
     MAC Address Table: 8K

Installation

DIN rail

Maximum Frame Size

9600bytes

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing

LED Indicator

Power: Red
     Fiber: Link 2(Green)
     Ethernet: Yellow

Power Input

12 to 52V DC redundant power

Power Consumption

<10 watts

Surge protection

 ± 4KV

Network Protocols

IEEE802.3 10BASE-T;
     IEEE802.3i 10Base-T;
     IEEE802.3u;100Base-TX/FX;
     IEEE802.3ab 1000Base-T;
     IEEE802.3z 1000Base-X;
     IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
     100BASE-TX: Cat5 or later UTP(≤10meter)
     1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A
     IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
     IEC61000-4-3 (RS): 10V/m (80~1000MHz)
     IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
     IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
     IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
     IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

166×137×68.5mm

Weight

Product Weight: 1.25KG    Packing Weight: 1.35KG

Working Environment

Working temperature: -40～80℃ ;
     Storage temperature: -40～80℃
     Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
