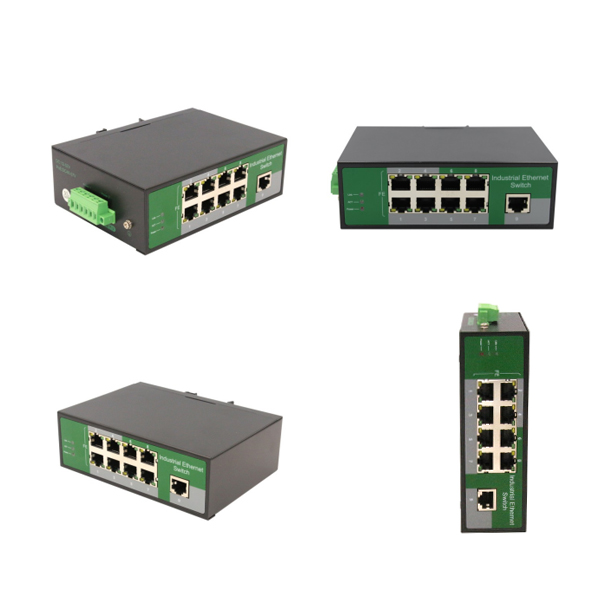

WPX-C09F 9-Port Industrial 100Mbps Switch Rugged Metal Case
9-port 10/100BASE-TX Industrial Ethernet Switch
Slim Type with more Practicability and Convenience
WPX-C09F an hardened 9-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 9-port 10/100/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 75℃.
Product Introduction
WPX-C09F
9-port 10/100BASE-TX Industrial Ethernet Switch
Slim Type with more Practicability and Convenience
WPX-C09F an hardened 9-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 9-port 10/100/100BASE-TX RJ45 copper interfaces delivered in an IP30 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 75℃.
WPX-C09F series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
WPX-C09F series is packaged in a compact IP30 case with DIN rail installation. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Specifications:
Specifications: | WPX-C09F |
10/100BASE-TXPort | 8 portRJ45 auto-MDI / MDI-X |
Performance Specification | Bandwidth:1.8Gbps |
Installation | DIN rail |
Maximum Frame Size | 9000bytes packet size |
Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
Enclosure | Steel alloy |
LED Indicator | Power:Red |
Power Input | 12 to52V DC redundant power |
Power Consumption | 3 watts max |
Surge protection | ±4KV |
Network Protocols | IEEE802.3 10BASE-T; |
Network cables | 10BASE-T: Cat3,4,5 UTP(≤100 meter) |
Industry Standard | FCC CFR47 Part 15,EN55022/CISPR22, Class A |
Certification | CE FCC Rohs compliance |
MTBF | >300,000hours |
Dimensions (W x D x H) | 143.7 x 103 x 47.7 mm |
Weight | Product Weight: 0.52KG |
Working Environment | Working temperature: -40～75℃; |
Warranty | 1-year replacement with new item; 3-years for main parts. |
