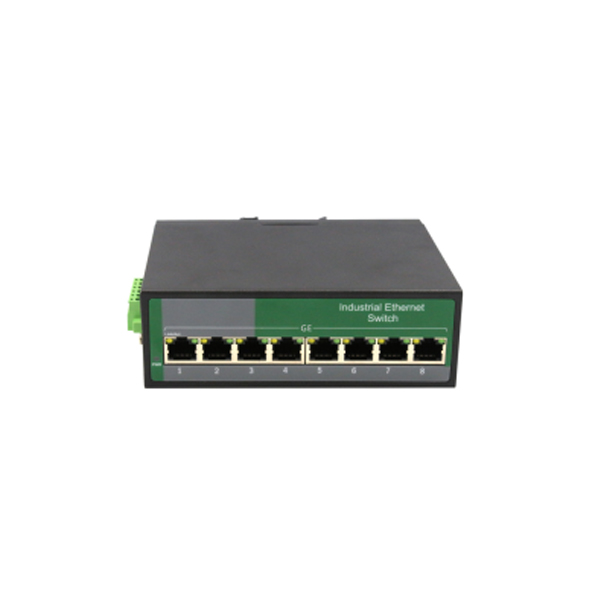

best price original factory OEM 8 Port 1000Mbps Industrial POE switch , 8 port PoE for CCTV,outdoor indoor strong sutable WPX-08GP

10/100/1000BASE-TXPort

8 PortRJ-45 auto-MDI / MDI-X

PoE Specification

PoE Standard: IEEE802.3af/ IEEE802.3at

PoE ports:1-8 port support PoE

Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)

PoE port Auto detectaf/at devices

Output Voltage: DC48V

Power Pin Assignment:1/2+;3/6-

Power Type: End-span( Mid-span optional)

Performance Specification

Bandwidth:20Gbps
Packet Buffer Memory:2Mbit
Packet Forwarding Rate:15Mpps
MAC Address Table:8K

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

Steel alloy

LED Indicator

Power:Red
Ethernet: Yellow
POE: Green

Power Input

48 to 57V DC

Power Consumption

3 watts

Surge protection

±4KV

Network Protocols

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

143.7 x 103 x 47.7 mm

Weight

Product Weight: 0.36KG
PackingWeight: 0.46KG

Working Environment

Working temperature: -40～75℃;
Storage temperature: -40～75℃
Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
