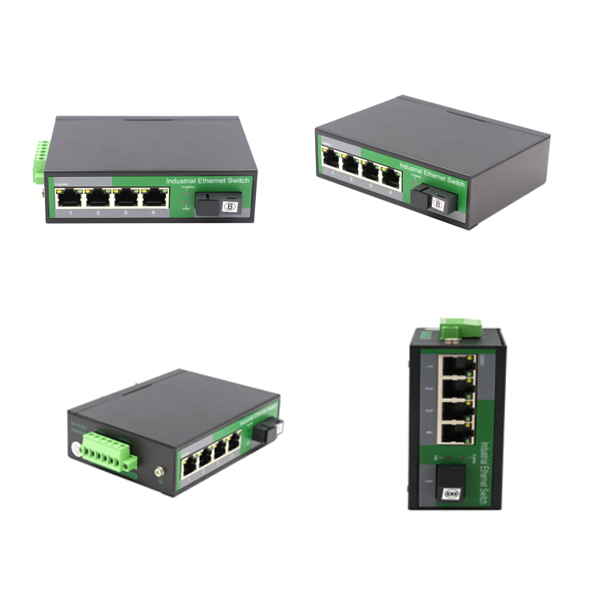

4 Port RJ45+1 Port optical Industrial media convertor,101001000Mbps 19 (Single-Mode (Tx1310nm and Rx1550 for each) ,Single,SC 20km) output max WPX--CF14G-SC20

10/100/1000Base-TX Port

4 portRJ-45 auto-MDI / MDI-X

1000Base-FX Port

WPX-CF14G-SC2: 1 SC interface
WP-CF14G-SC20: 1 SCInterface
WPX-CF14G-SFP: 1SFP Slot

Fiber Port Type

WPX-CF14G-SC2: SC / multi-mode,up to distance 2km ;
WPX-CF14G-SC20:SC / single-mode,up to distance 20km ;
WPX-C14G-SFP:Vary on module

Optical Frequency

WPX-CF14G-SC2: 1310nm
WPX-CF142G-SC20: 1310nm
WPX-CF14G-SFP:Vary on module

Performance Specification

Bandwidth:14Gbps
Packet Buffer Memory:1.2Mbit
Packet Forwarding Rate:10.5Mpps
MAC Address Table:2K

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

Steel alloy

LED Indicator

Power:Red
Fiber: Link 2(Green)
Ethernet: Yellow

Power Input

12 to52V DC redundant power

Power Consumption

< 3 watts

Surge protection

±4KV

Network Protocols

IEEE802.3 10BASE-T;
IEEE802.3i 10Base-T;
IEEE802.3u;100Base-TX/FX;
IEEE802.3ab 1000Base-T;
IEEE802.3z 1000Base-X;
IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100meter)
1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A
IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)
IEC61000-4-3 (RS): 10V/m (80~1000MHz)
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

Dimensions (W x D x H)

118 x 86 x 33.5 mm

Weight

Product Weight: 0.36KG
PackingWeight: 0.46KG

Working Environment

Working temperature: -40～75℃;
Storage temperature: -40～75℃
Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
