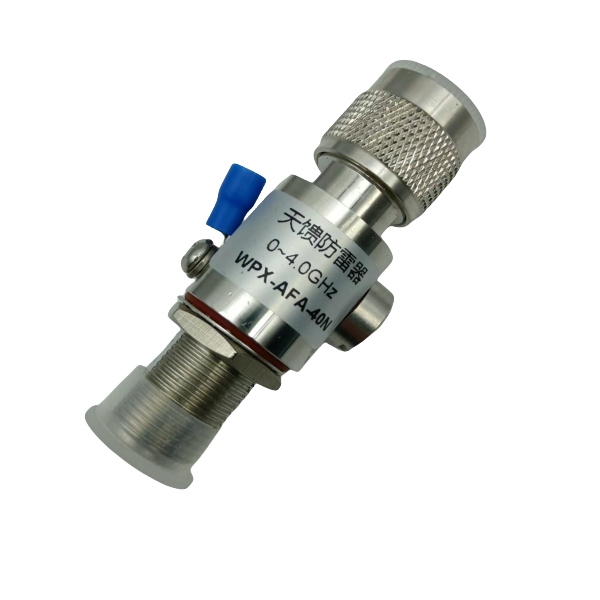

AF surge protector WPX-AFA-40N
Product introduction:High and stable lightning protection effect, long serving life;Hybrid circuit design, every line can pass feed supply
Product application:AF SPD with N type connection is applied to the feeder ports of wireless receiving and transmitting equipment (such as wireless communications, navigation systems, radio antenna etc)
Phone number:+86-731-88650578
Contact E-mail:service@hnwpx.com
Specifications
Model Number | WPX-AFA-40N |
Art No. | 650 112 |
SPD category | Type 1+Type 2 |
Degree of protection(IP code) | IP65 |
Operating Temperature Range | -40℃~+80℃ |
Relative Humidity | ≤95%(25℃) |
Atmospheric Pressure | 86~106kPa |
Working Frequency | 0-4GHz |
DC Max Continuous Operating Voltage( Uc) | 32V |
AC Max Continuous Operating Voltage( Uc) | 60V |
Max working current (IL) | 3A |
D1 Impulse discharge current (10/350μs)(Iimp) | 2kA |
C2 Nominal discharge current (In) | 10kA |
Voltage protection level D1(UP) | ≤400V |
Voltage protection level C2(UP) | ≤700V |
Voltage protection level wire-wire 1kV/us C3(UP) | ≤600V |
Characteristic impedance | 50Ω |
Housing material | Brass |
Model of port (input/output) | N-J/K |
Diagram of dimensions
Description
AF SPD with N type connection is applied to the feeder ports of wireless receiving and transmitting equipment such as wireless communications, navigation systems, radio antenna etclightning protection.
Adopt coaxial gas pipes technology, surge protector with the features of wide frequency range,low insertion loss, low reflection loss and good lightning protection effect.
