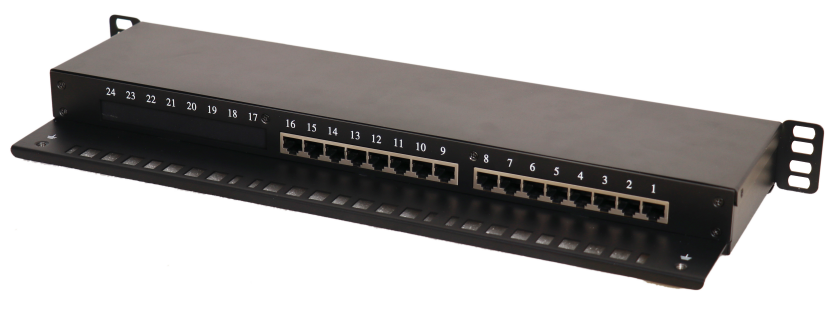

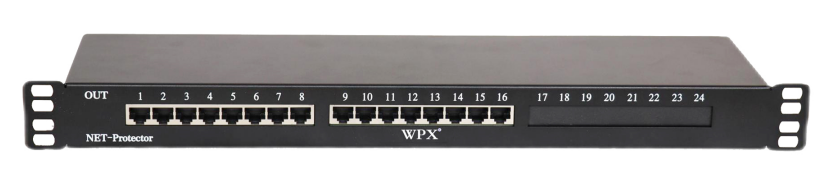

Network SPD WPX-BHSA-16R2-5
Product introduction:100Mbps transfer rate; 16 Channels protection; RJ45 socket; SPCC housing;
Product application:16 Channels protection; RJ45 socket; SPCC housing;
Phone number:+86-731-88650578
Contact E-mail:service@hnwpx.com
Specifications
Model Number | WPX-BHSA-16R2-5 |
Art No. | 691 112 |
Operating Temperature Range | -40℃~+80℃ |
Relative Humidity | ≤95%(25℃) |
Atmospheric Pressure | 86~106 kPa |
Working Voltage | 5v |
Impulse Durability 1.2/50μs | 5 kV |
Impulse Durability 8/20μs | 2.5kA |
Voltage protection level Up | ≤30V |
Data transmission | 100Mbps |
Interface Type | 16×RJ45 |
Protected Lines | Line-PE 16 lines protection |
Enclosure Material | cold-roll steel sheets |
Color | Black |
Protection Degree | IP20 |
Weight | (1510±10)g |
Diagram of dimensions
Description
Signal surge protector WPX-BHSA-16R2-5 type products are mainly used for TCPIP communication network protect signal lines of electrical equipment against the influence of lightning electromagnetic pulse, induced over-voltage, operating over voltage. Signal surge protectors are widely used in communications, security monitoring, and industrial control fields. Under the premise that does not affect the device’s normal communication, it has a good lightning protection effect.
