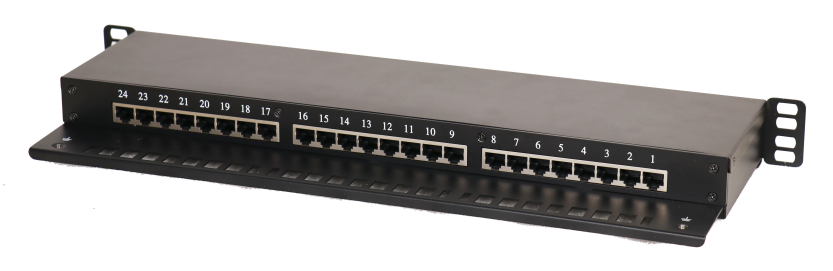

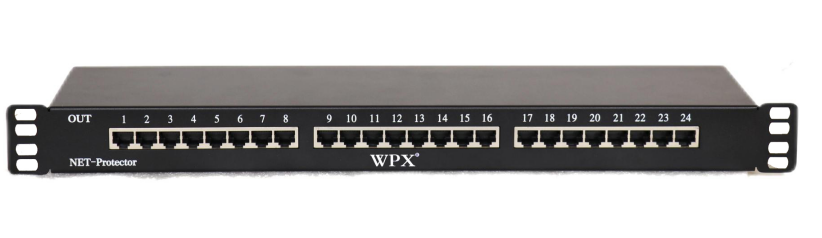

Network SPD WPX-BHSA-24R2-5

Network SPD WPX-BHSA-24R2-5


Product introduction:100Mbps transfer rate; 24 Channels protection; RJ45 socket; SPCC housing;

Product application:24 Channels protection; RJ45 socket; SPCC housing;

Phone number:+86-731-88650578

Contact E-mail:service@hnwpx.com


Specifications
Model NumberWPX-BHSA-24R2-5
Art No.691 101
SPD categoryType2
Rated Working Voltage( Uo)5V
DC Max Continuous Operating Voltage( Uc)6V
AC Max Continuous Operating Voltage( Uc)4.8V
Max working current (IL)0.5A
C2 Total nominal discharge current (8/20μs)(Itotal)10kA
  C2 nominal discharge current (8/20μs)per wire(In)2.5kA
Total nominal discharge current C2-PE(Itotal)20kA
Nominal discharge current per wire C2-PE(In)2.5kA
Voltage protection level wire-wire C2(UP)≤50V
Voltage protection level wire-PE C2(UP)≤70V
Voltage protection level wire-wire 1kV/usC3(UP)≤25V
Voltage protection level wire-PE 1kV/usC3(UP)≤25V
Response Time(tA)≤1ns
transmission rate100Mbps
Insertion Loss(100MHz)≤1.0dB
Impedance in series≤0.5Ω
Protected pin1/2;3/6;
Relative Humidity≤95%(25℃)
Working temperature range(TU)-40℃---+80℃
Atmospheric Pressure86kPa...106kPa
Wiring methodsRJ45(shield)
Port numbersin-24×RJ45;out-24×RJ45
Housing materialSPCC/UL V-0
Installation placeIndoor
Degree of protection(IP code)IP20
Installation methods19-inch rack
Diagram of dimensions

1111



Description

Signal surge protector WPX-BHSA-24R2-5 type products are mainly used for TCPIP communication network protect signal lines of electrical equipment against the influence of lightning electromagnetic pulse, induced over-voltage, operating over voltage. Signal surge protectors are widely used in communications, security monitoring, and industrial control fields. Under the premise that does not affect the device’s normal communication, it has a good lightning protection effect.
