Single-port indoor and outdoor 1-port surge protector for 100Mbps, 1000Mbps, 10000MbpsPOE SPD WPX-PTSA-R4-48
Indoor and outdoor 304 stainless steel 1-port surge protector 100/10000M active Ethernet lightning arrester, used to protect the internal interface circuits of high-speed Ethernet. Connected in series at the input end of the protected equipment. When the transmission line is subjected to lightning induction, the lightning current flows through the lightning branch of the protector to the ground and clamps the lightning overvoltage within the allowable voltage range of the equipment, thus ensuring the safety of the equipment. The waterproof rating reaches IP67. (The WPX-PTSA-R4-48 housing and internal materials are corrosion-resistant, heat-resistant, salt fog-resistant, and have a long lifespan.)
Contact E-mail:service@hnwpx.com
Specifications
| Model Number | WPX-PTSA-R4-48 |
| Art No. | 692 401 |
| SPD category | Type2 |
| Rated Working Voltage( Uo) | 48V |
| DC Max Continuous Operating Voltage( Uc) | 58V |
| AC Max Continuous Operating Voltage( Uc) | 35V |
| Max working current (IL) | 0.8A |
| POE power supply | 1,2-3,6 or 4,5-7,8 ;Total 75W |
| C2 Total nominal discharge current (8/20μs)(Itotal) | 10kA |
| C2 nominal discharge current (8/20μs)per wire（In） | 2.5kA |
| Total nominal discharge current C2-PE(Itotal) | 20kA |
| Nominal discharge current per wire C2-PE(In) | 2.5kA |
| Voltage protection level wire-wire C2(Up) | ≤120V |
| Voltage protection level wire-PE C2(Up) | ≤150V |
| Voltage protection level wire-wire 1kV/usC3(Up) | ≤90V |
| Voltage protection level wire-PE 1kV/usC3(Up) | ≤90V |
| Response Time(tA) | ≤1ns |
| transmission rate | 1000Mbps |
| Insertion Loss(100MHz) | ≤1.0dB |
| Impedance in series | ≤0.5Ω |
| Protected pin | 1/2;3/6;4/5;7/8 |
| Relative Humidity | ≤95%（25℃） |
| Working temperature range(TU) | -40℃---+80℃ |
| Atmospheric Pressure | 86kPa...106kPa |
| Wiring methods | RJ45(shield) |
| Port numbers | in-1×RJ45；out-1×RJ45 |
| Housing material | Stainless steel |
| Installation place | Indoor or Outdoor |
| Degree of protection（IP code） | IP67 |

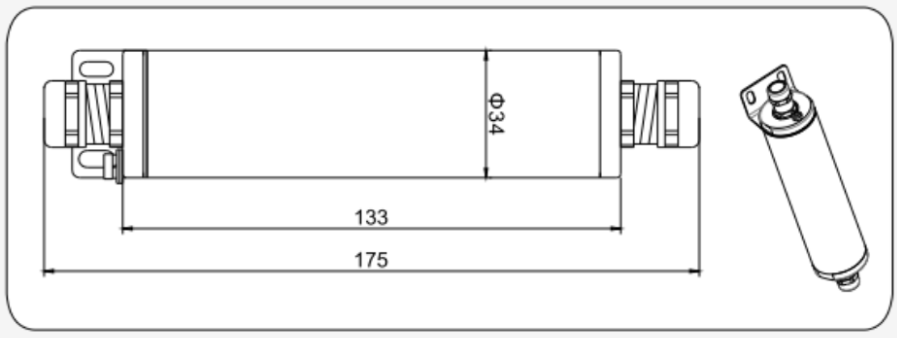

Diagram of dimensions

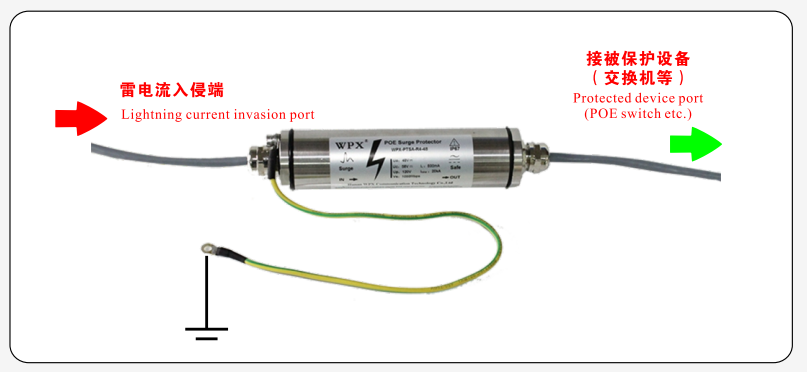

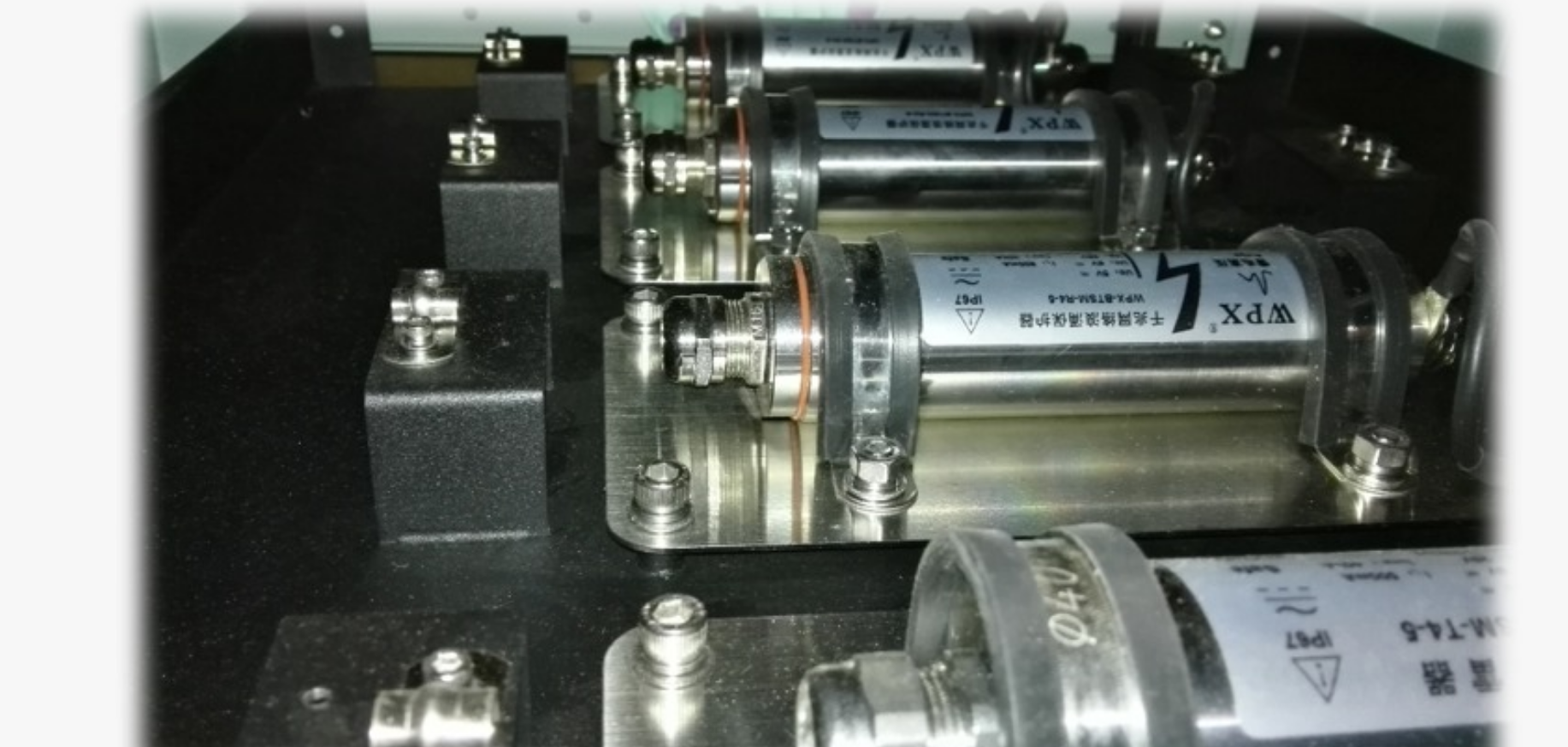

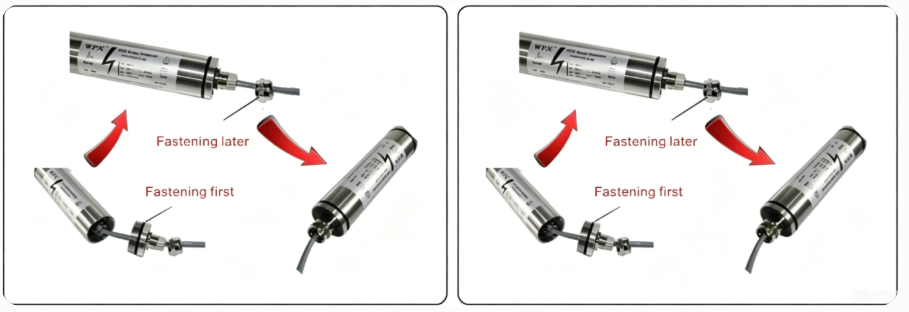

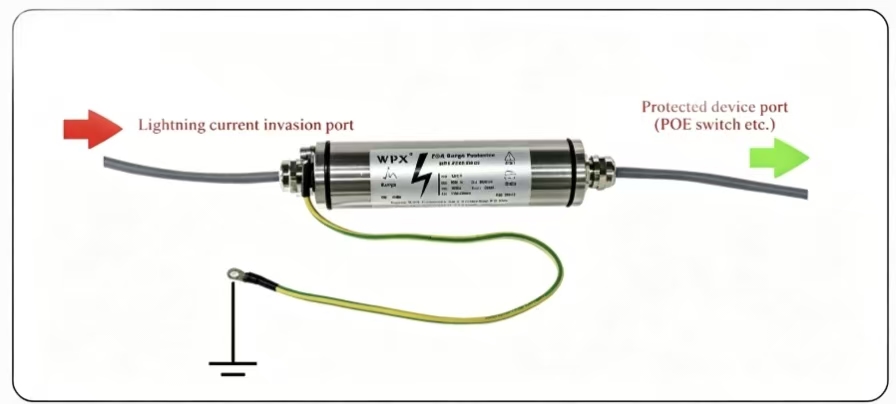

Description
POE surge protector PTSA - R4-48 signal surge protective device is mainly for protecting high-speed Ethernet Internal interface circuit with POE. Connection in series the input of protected equipment,when the transmission line suffered lightning induction,surge protective device will discharge lightning current to the earth, clamp the lightning overvoltage so that keep the voltage within an allowable range and ensure the safety of the equipment.
