POE SPD WPX-PTSA-2R4-48
Product introduction:Support data rates of up to 1000Mbps; enclosure rating of IP67 for all outdoor conditions; high data voltage protection; Pole and Wall mounting kits
Product application:WPX-PTSA-2R4-48 offers outdoor data line series protection designed to support Ethernet applications including 10/100 and 1000 BaseT interfaces with PoE.
Phone number:+86-731-88650578
Contact E-mail:service@hnwpx.com
Specifications
| odel Number | WPX-PTSA-2R4-48 |
| Art No. | 692 406 |
| SPD category | Type2 |
| Rated Working Voltage( Uo) | 48V |
| DC Max Continuous Operating Voltage( Uc) | 58V |
| AC Max Continuous Operating Voltage( Uc) | 35V |
| Max working current (IL) | 1A |
| POE power supply | 1,2-3,6 or 4,5-7,8 ;Total 95W |
| C2 Total nominal discharge current (8/20μs)(Itotal) | 1.2kA |
| C2 nominal discharge current (8/20μs)per wire（In） | 0.3kA |
| Total nominal discharge current C2-PE(Itotal) | 20kA |
| Nominal discharge current per wire C2-PE(In) | 2.5kA |
| Voltage protection level wire-wire C2(Up) | ≤120V |
| Voltage protection level wire-PE C2(Up) | ≤1000V |
| Voltage protection level wire-wire 1kV/usC3(Up) | ≤90V |
| Voltage protection level wire-PE 1kV/usC3(Up) | ≤600V |
| Response Time(tA) | ≤1ns |
| transmission rate | 1000Mbps |
| Insertion Loss(100MHz) | ≤1.0dB |
| Impedance in series | ≤0.5Ω |
| Protected pin | 1/2;3/6;4/5;7/8 |
| Relative Humidity | ≤95%（25℃） |
| Working temperature range(TU) | -40℃---+80℃ |
| Atmospheric Pressure | 86kPa...106kPa |
| Wiring methods | RJ45(shield) |
| Port numbers | in-1×RJ45；out-1×RJ45 |
| Housing material | PC/ABS UL94 V-0 |
| Installation place | Indoor or Outdoor |
| Degree of protection（IP code） | IP54 |

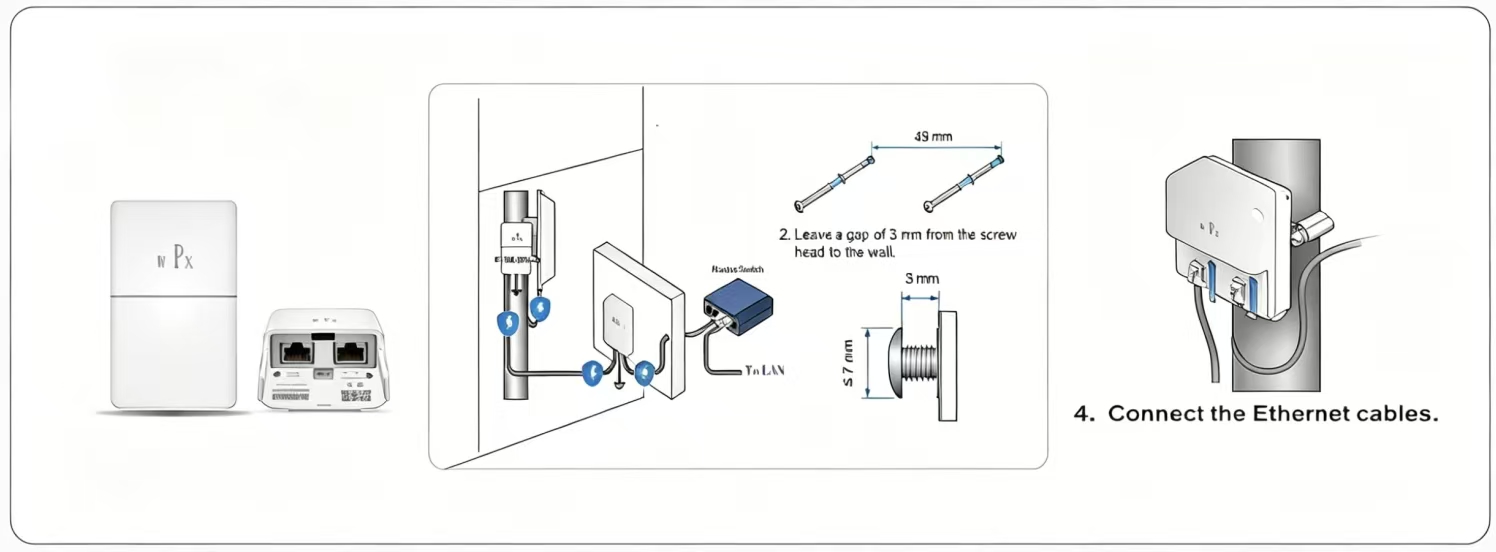

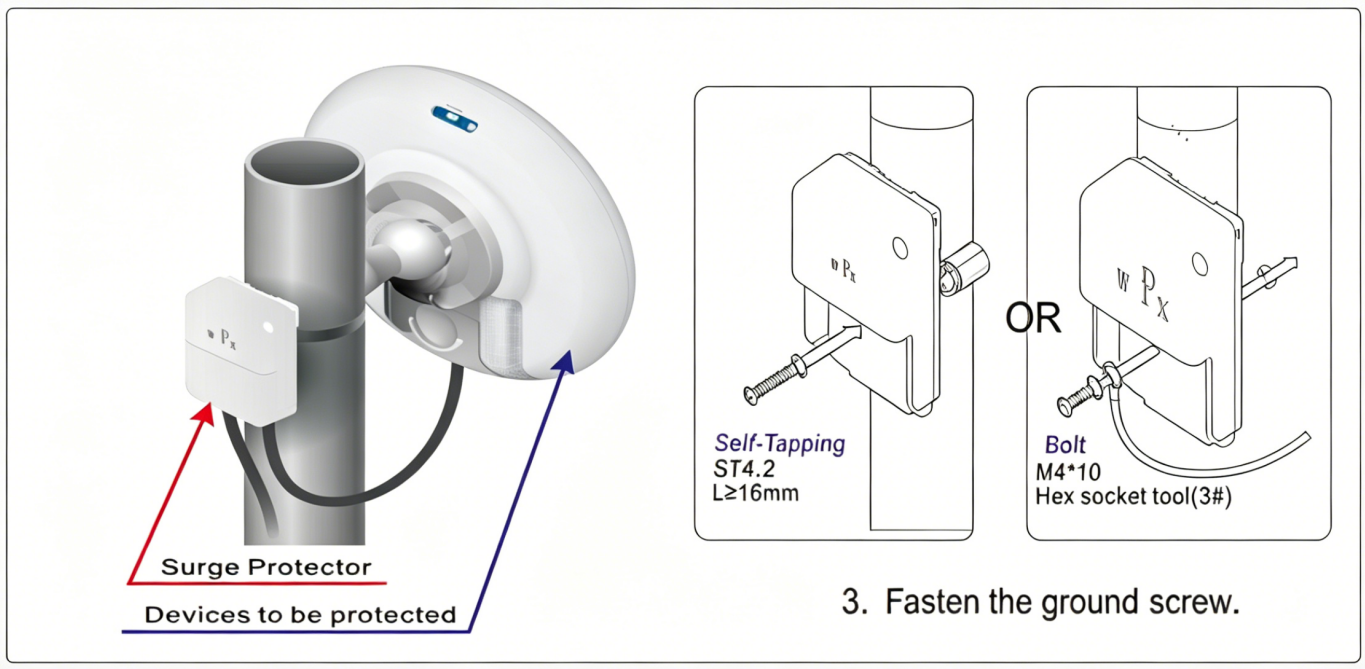

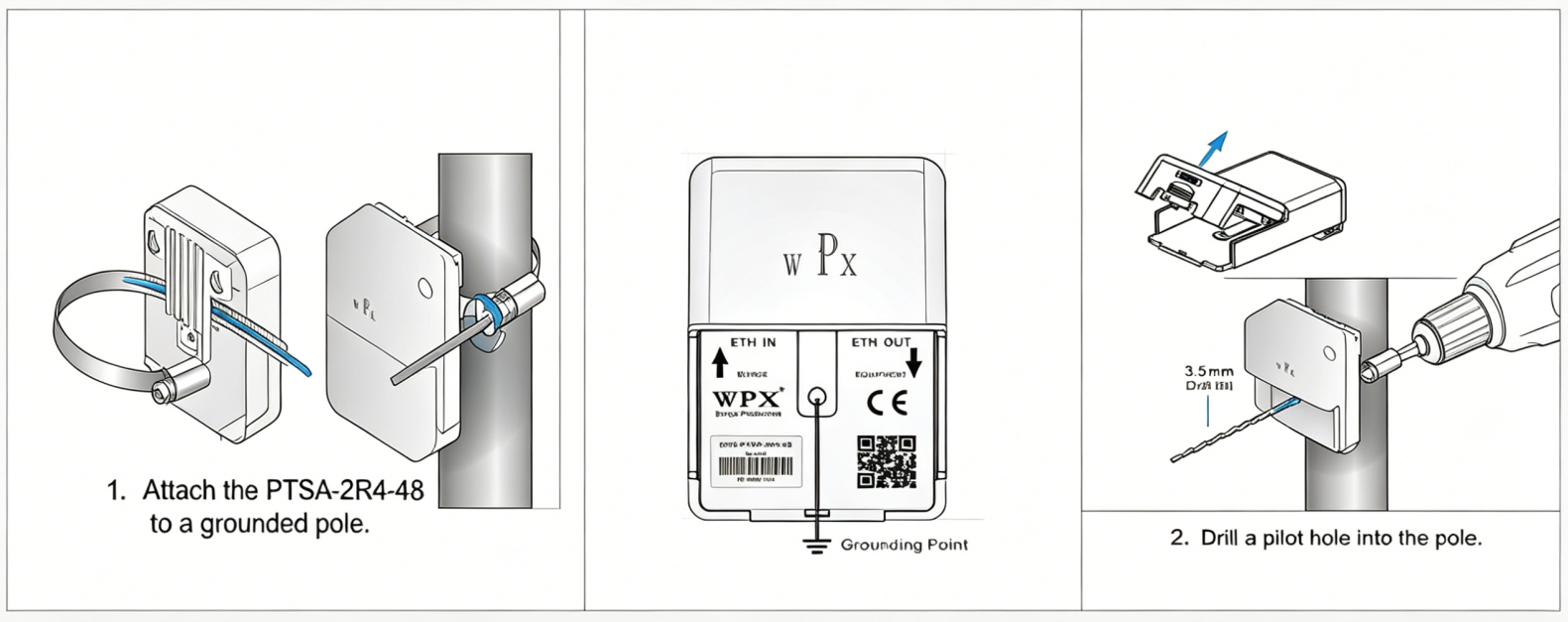

Diagram of dimensions
Description
Total Maximum discharge current(Imax) 20kA(8/20μs);
POE power supply part with thermal protection;
Low limit voltage;
Small insertion loss;
Data transmission rate up to 1000Mbps;
Small volume,easy installation.
