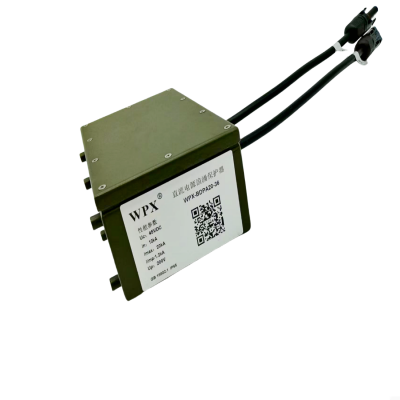

WPX-BDP DC WPX-BDPA20-36
Product introduction:The shell protection grade is IP20, resistance grade is UL94VO
Product application:Small volume, light weight, simple structure, easy installation
Phone number:+86-731-88650578
Contact E-mail:service@hnwpx.com
Specifications
| Model Number | WPX-BDPA20-36 |
| Art No. | 811 105 |
| SPD according IEC61643-11/GB 18802.1/EN 61643-11 | Class II/Type 2 |
| Modes of protection | DC+...DC-,DC+/DC-...PE |
| Rated Working Voltage Uo | 36Vdc |
| Max Continuous Operating Voltage Ue(DC+...DC-;DC+/DC-...PE) | 45Vdc |
| Nominal Discharge CurrentIn(8/20us) | 10kA |
| Max Discharge Current In(8/20us) | 20kA |
| IkA，Voltage Protection LevelUp | ≤0.12kV |
| 5kA, Voltage Protection Level Up(DC+...DC-) | ≤0.15kV |
| In Voltage Protection LevelUp | ≤0.25kV |
| Response Time tA | ≤25ns |
| Cross sectionnl area for wiring terminal connected to conductor | PV1-F.6mm3 |
| Mode ofConnectian | PV-MC4 |
| Operating Temperature Runge | -40*C...+80C |
| Relative Humidity | ≤95%( 25C ) |
| Atmospheric Pressure | 76kPa...106kPa |
| Enclosure material | 316 Stainless steel plate/UL V-0 |
| Enclosure material | Hold can be installed |
| Degree ofprotection (lP code) | IP54 |
Diagram of dimensions
Description
-multi-level lightning protection design.
- has overheat protection,
- has work instruction, service instruction and heat release function,
