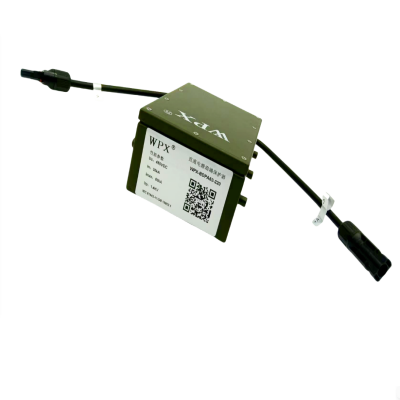

WPX-BDP DC WPX-BDPA60-220

WPX-BDP DC WPX-BDPA60-220


Product introduction:the shell protection grade is IP20, resistance grade is UL94VO.

Product application: small volume, light weight, simple structure, easy installation.

Phone number:+86-731-88650578

Contact E-mail:service@hnwpx.com



Specifications
Model NumberWPX-BDPA60-220
Art No.811 105 001
SPD according IEC61643-11/GB 18802.1/EN 61643-11Class II/Type 2
Modes of protectionDC+...DC-,DC+/DC-...PE
Rated Working Voltage Uo400Vdc
Max Continuous Operating Voltage Ue(DC+...DC-;DC+/DC-...PE)450Vdc
Nominal Discharge CurrentIn(8/20us)30kA
Max Discharge Current In(8/20us)60kA
IkA,Voltage Protection LevelUp≤1.0kV
5kA, Voltage Protection Level Up(DC+...DC-)≤1.2kV
In Voltage Protection LevelUp≤1.5kV
Response Time tAs25ns
Cross sectionnl area for wiring terminal connected to conductorPV1-F.6mm3
Mode ofConnectianPV-MC4
Operating Temperature Runge-40*C...+80C
Relative Humidity≤95%( 25C )
Atmospheric Pressure76kPa...106kPa
Enclosure materialStainless steel plate/UL V-0
MountingHanging Plate installation
Degree ofprotection (lP code)IP54
Diagram of dimensions

d

Description


 -multi-level lightning protection design.


-has overheat protection,


- has work instruction, service instruction and heat release function,
